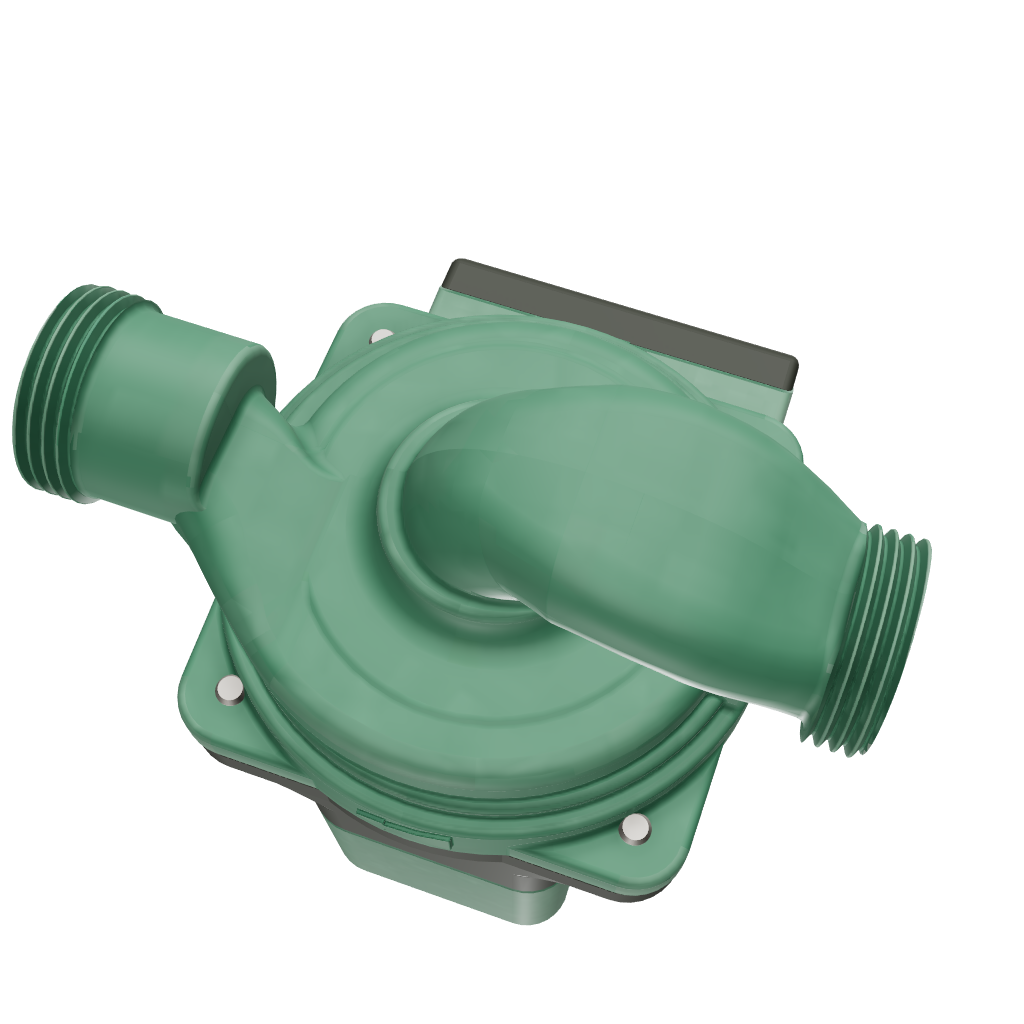

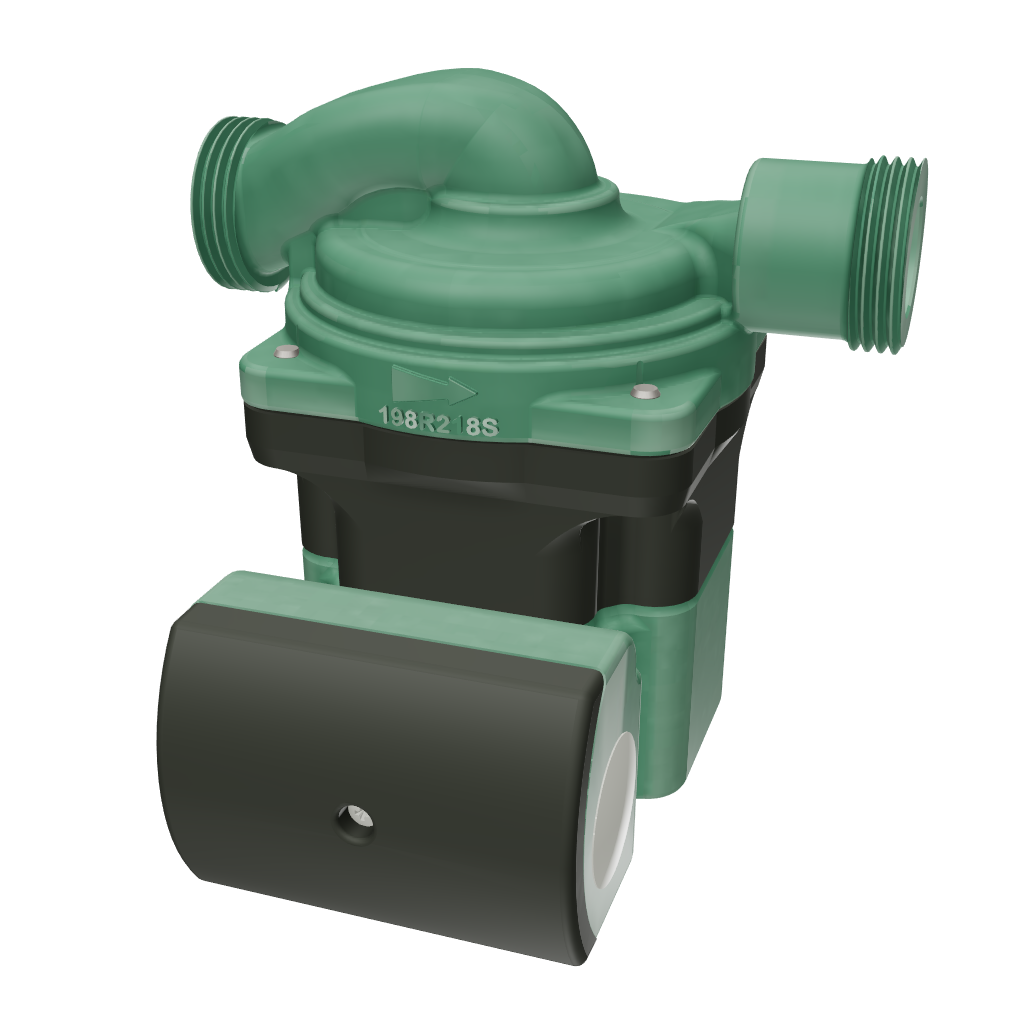

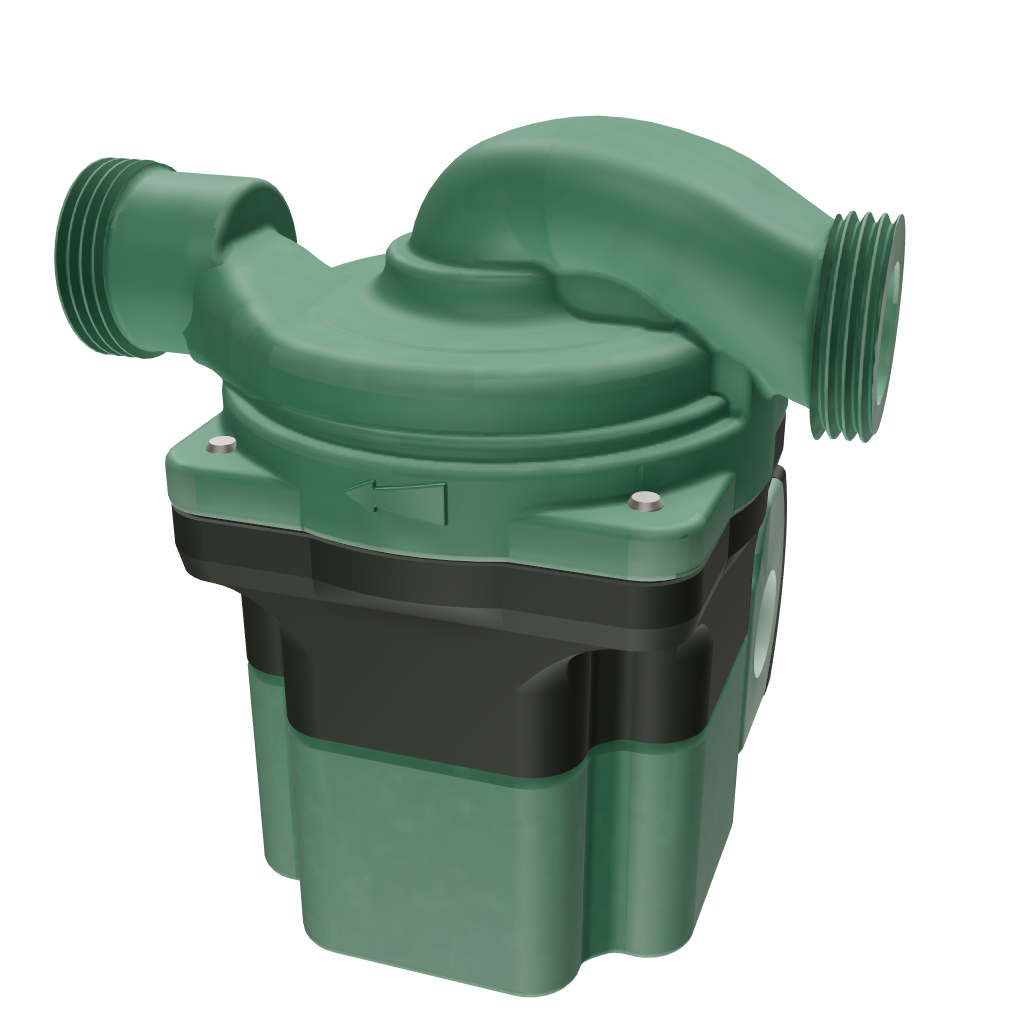

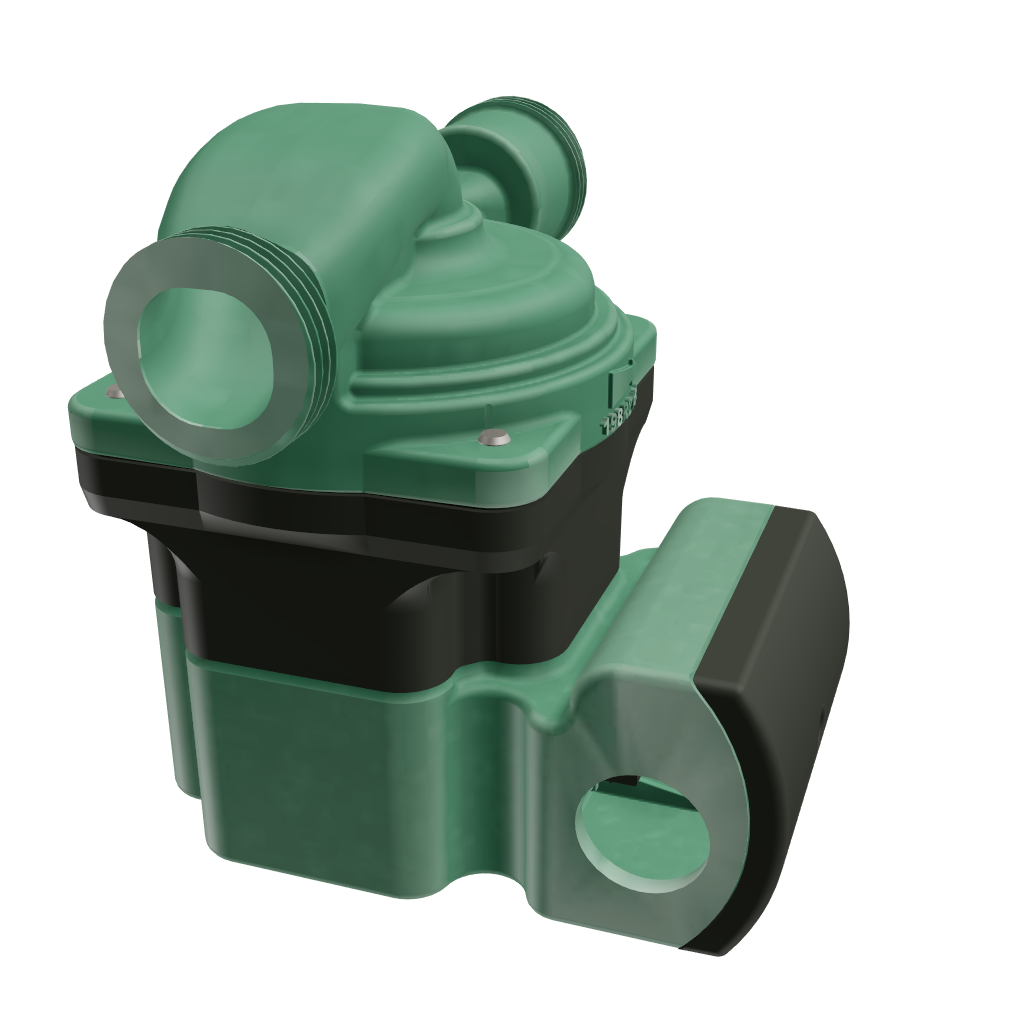

007e ECM High-Efficiency Circulator

The legacy of the 00®. The efficiency of ECM.

Variable-speed ECM technology replaces the standard PSC motor, consuming up to 85% less electricity while maintaining the proven reliability of the iconic 007. SureStart® and Bio Barrier® come standard.

Flow

0–16 GPM

Head

0–10 ft

Max Temp

230°F

Power

44W max

BIO BARRIER® protection against system contaminants
SureStart® automatic air purging and unblocking
Integral Flow Check (IFC®) included
Double insulated — no ground required
¾"–1½" connections, cast iron or stainless

Find a Rep Where to Buy Support

Part No. 007e-F4-0013IFC

Overview

The 007e ECM replaces the standard PSC motor with an electronically commutated motor that automatically adjusts speed based on system demand. Lower energy consumption at partial load — which is most of the time in a well-designed hydronic system.

Drop-in replacement for all existing 007 installations. Same footprint, flange pattern, and connection sizes.

Applications

Residential hydronic heating
Radiant floor systems
Fan coil units
Domestic hot water recirculation
Solar thermal systems
Light commercial HVAC

Technology

ECM motors are brushless DC motors with a built-in inverter. Unlike PSC motors that run at fixed speed, ECM motors modulate continuously — reducing energy use by up to 85% compared to single-speed alternatives.

SureStart® monitors motor torque at startup and automatically reverses briefly to clear air locks. Bio Barrier® coating on wetted components inhibits biofilm growth in domestic recirculation applications.

PDF

Installation & Operation Manual
